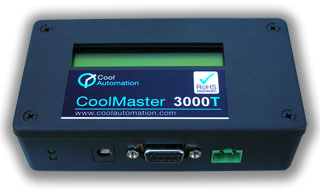

CoolMaster 3000T
RS232 Interface Adapter for Toshiba VRF Systems
ORDER NOW
 General Description  Features  Block Diagram  Compatibility List
 SW Tools & Utilities  Downloads  Documentation  Applications
 Email Support  Order On-line  Warranty  Related Products


Control and Monitor Toshiba VRF Air Conditioning Systems
  • Compatible with Toshiba's Communication line
  • Provides Simple RS232 Interface
  • Can be used with Home Automation Controller
  • Customizable for specific user applications
  • Field Upgradable
General Description

CoolMaster 3000T is versatile bridge device connecting Toshiba VRF Air Conditioning systems and any RS232 or USB capable device like Home PC, Embedded PC or Home Automation Controller. Exposing simple interface over RS232 communication line or USB bus, CoolMaster gains user application full control on indoor units and provides access to VRF system parameters. In other words CoolMaster hides complexity of internal Toshiba Communication line (including very unique physical layer) and instead gives simple, comprehensive, well documented protocol running on popular RS232 or USB connection.

Features

  • Easy to integrate with Home Automation Systems and PC applications
    CoolMaster Interface is very simple and straightforward. Implementation of software modules to support CoolMaster is not complex at all.

  • Unified RS232 Interface
    All CoolMaster products impose unified RS232 interface. It means for example that home automation application working on Toshiba VRF system with CoolMaster 3000T will work exactly the same way on Daikin VRV, Sanyo VRF, Mitsubishi Electric VRF and other systems with CoolMaster 1000D, 2000S, 4000M. No special interface adaptation will be required to migrate from one CoolMaster type to another.

  • Full Control over Indoor Units Operation
    On/Off control,  Cool, Heat, Fan, Dry mode selection,  Set Temperature Control,  Fan Speed Control,  Swing Control (for wall mounted and cassette indoor units),  Filter Reset Sign,  Group Operations (All On, All Off)

  • Indoor Units Monitoring
    Failure Alarms, Set point temperature, Operation status (on/off) Operation mode (cool/heat/fan/dry), Fan speed (high/low), Filter sign, Swing

  • CoolMaster unit can be extended with additional Hardware and Software modules
    Up to 4-GPIO, RS485, MODBUS, C-Bus(under development).

  • Field Upgradable
    New Firmware can be uploaded via RS232 port. No need to open unit to change it's functionality.

Block Diagram


Compatibility List

MCY-MAP..HT MMU-AP..H MMU-AP..MH MMU-AP..WH
MMY-MAP..T8 MMU-AP..YH MMD-AP..BH MMD-AP..H
MMY-MAP..HT8 MMD-AP..SPH MMC-AP..H MMK-AP..H
MMY-MAP..FT8 MML-AP..H MML-AP..BH MMF-AP..H
MMD-AP..HFE
